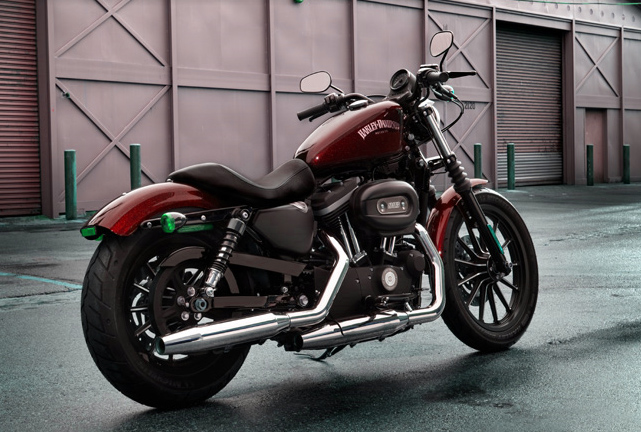

2012 Harley-Davidson XL883N Iron 883

2012 Harley-Davidson XL883N Iron 883 - Canadian Specifications/Technical Detail


Dimensions
Length: 2,255 mm
Seat Height, Laden: 653 mm
Seat Height, Unladen: 735 mm
Ground Clearance: 120 mm
Rake (steering head) (deg): 30.5
Trail: 117 mm
Wheelbase: 1,510 mm
Tires, Front Specification: 100/90B19 57H
Tires, Rear Specification: 150/80B16 77H
Fuel Capacity 3: 12.5 l
Oil Capacity (w/filter): 2.6 l
Weight, As Shipped: 251 kg
Weight, In Running Order: 260 kg
Luggage Capacity -Volume: N/A
Luggage Capacity -Weight: N/A

Engine
Engine 1: Air-cooled, Evolution®
Bore: 76.2 mm
Stroke: 96.8 mm
Displacement: 883 cc
Compression Ratio: 9:01
Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)

Drivetrain
Primary Drive: Chain, 57/34 ratio
Gear Ratios (overall) 1st: 10.41
Gear Ratios (overall) 2nd: 7.436
Gear Ratios (overall) 3rd: 5.531
Gear Ratios (overall) 4th: 4.584
Gear Ratios (overall) 5th: 3.931
Gear Ratios (overall) 6th: N/A

Chassis
Exhaust: Chrome, staggered shorty exhaust with dual mufflers
Wheels, Optional Style Type: N/A
Wheels, Front Type: Black, 13-Spoke Cast Aluminum
Wheels, Rear Type: Black, 13-Spoke Cast Aluminum
Brakes, Caliper Type: Dual-piston front, single-piston rear
Parking Brake: N/A

Performance
Engine Torque Testing Method: J1349
Engine Torque 2: 74 Nm
Engine Torque (rpm): 3,750
Lean Angle, Right (deg.): 29
Lean Angle, Left (deg.): 30
Fuel Economy: Combined City/Hwy: 4.6 l/100 km

Electric

Lights (as per country regulation), Indicator LampsHigh beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
Gauges: Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights

1Measurement reflects 180 lb. (81.7 kg) operator weight.
2Recommended 91 octane or higher fuel (R+M)/2.
3Values shown are nominal. Performance may vary by country and region.
4Standard and optional fuel systems may vary by country.
5Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6Standard and optional wheels may vary by country and region.
7North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8See motorcycle owner's manual for complete details.
